32.7cc 1.2HP 2-Stroke Gas Powered T-Post Driver Kit - EPA Certified for Fence Installation & Landscaping Projects - TheLAShop

Product Description

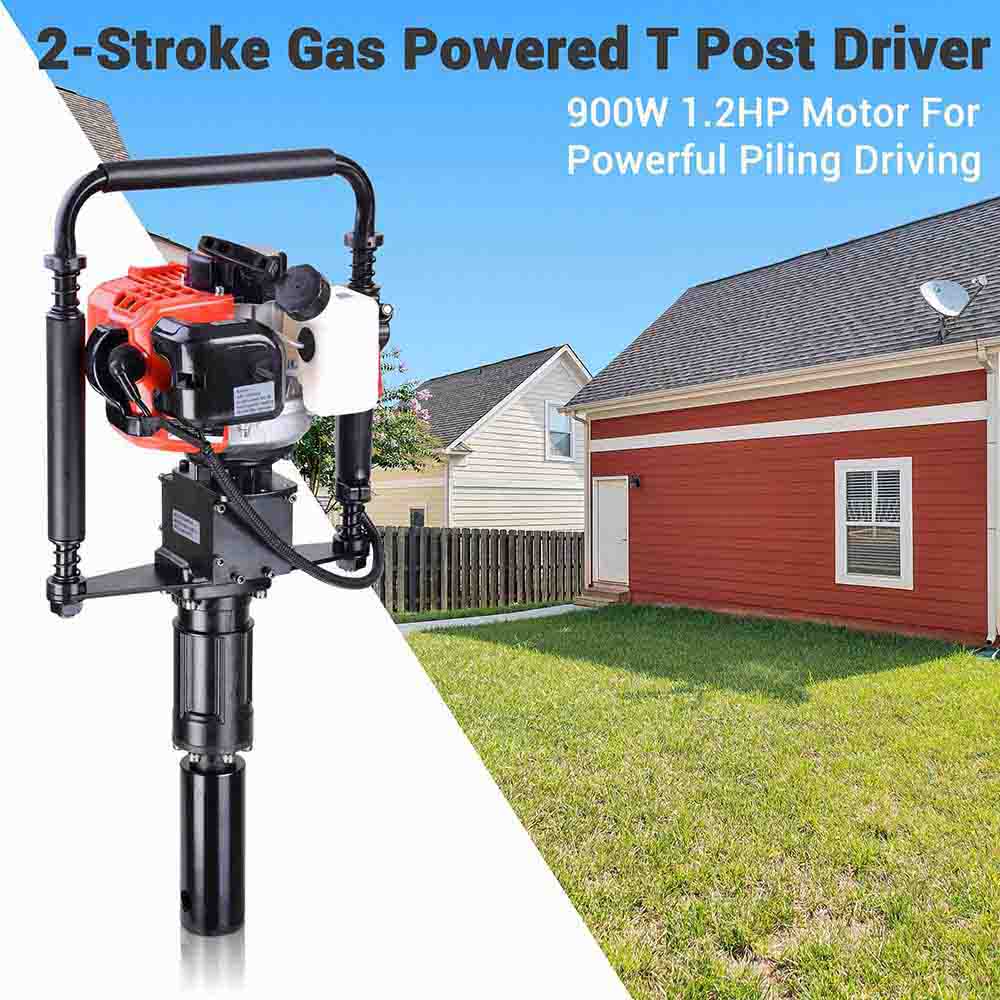

32.7cc EPA Gas Powered Pile Driver with 2-Stroke motor, Mini Impact Rate 1700bpm, Impact energy 25-45J, Max power 1.2HP, package comes with two different size Piling Heads, a Oil Can for mixing petrol and diesel oil together easily.

Features:

• 900W pile driver features 1700 to 2230 BPM and 9000 r/min for providing powerful impact force
• 2-Stroke gas powered motor offers great power performance, use 2-stroke mixing oil to supply power

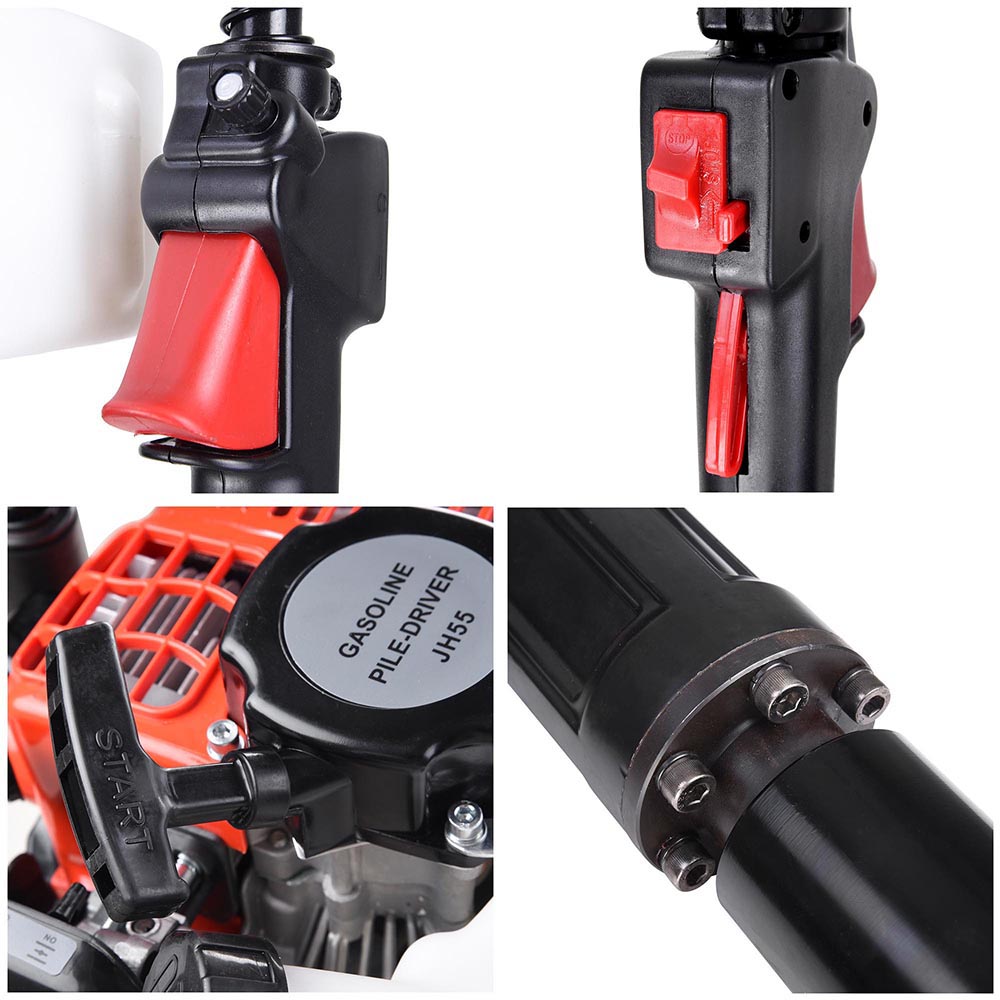

• Press the fuel bubble to full fill the carburetor and pull the recoil handle to start pile driver
• Comes with necessary tools for easy to use, socket sleeves fit for 2 1/16" and 2 5/8" piling heads
• Cooling vents for good heat dissipation; rubber grip handle for carrying and transportation

Specification:

• Overall Size without Pile Socket (LxWxH): 24" x 13 3/8" x 9 13/16" (61 x 34 x 25 cm)
• Pile Socket Inner Diameter: 2 3/16" and 2 11/16" (55 mm and 69 mm), fits for 2 1/16" and 2 5/8" (53 mm and 67 mm) piling heads
• Displacement: 32.7 cc
• Impact Frequency: 1700 to 2230 BPM
• Impact Energy: 25 to 45 J
• Power and Speed: 1.2 HP (900 W) and 9000 r/min
• Torque and Speed: 1.45 N.m and 5000 r/min
• Fuel Type: Mixed Oil (25 gasoline : 1 motor oil)
• Fuel Consumption Rate: Less than or equal to 0.5L/H
• Fuel Tank Capacity: 0.9 L
• Starter System: Hand pull start
• Material: Iron, PP, Aluminum
• Net Weight: 34.17 Lbs (15.5 kg)

Package Includes:

• 1x Pile Driver
• 2x Inner Piling Heads
• 2x Socket Sleeves
• 1x Lubricating Grease
• 1x Oil Tank (empty)
• 1x Spark Plug
• 1x Disconnect Rod
• 1x Tool Kit
• 1x User Manual

Notice:

• Please notice that this pile driver is used to drive the pile in soft ground like soft soil. Do NOT drive it in solid ground, otherwise this machine will stop working.
