Product Description

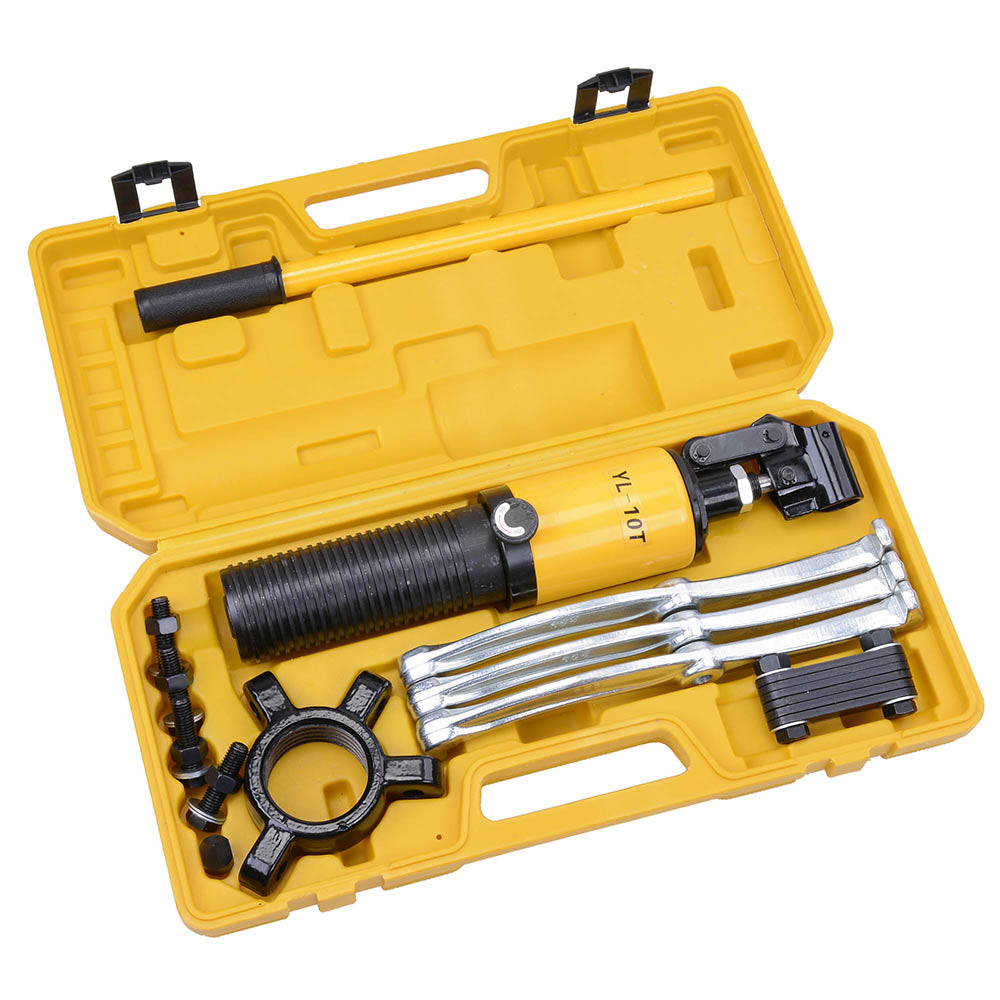

This 10 Ton Hydraulic Gear Puller Changeable 3 Jaws Kit with Carrying Case, is indispensable tools for agriculture, machine, garage, industry use. It could exchange 2 or 3 jaws freely for different use and its pump head can be turned by 360° for flexibility, suitable for pulling hubs, flanges, gears, bearings and more.
Features:
- Widely used for railway vehicle maintenance, car mechanical factories, mining equipment maintenance, repair workshops, etc
- 3 in 1 - Puller set integrates pump, oil tube and drawing machine for providing comprehensive functions on mechanical installation and repair, can be used horizontally and vertically
- Flexible & Easy Operation
- 3 jaws can be adjusted from high to low point and pump head can be rotated 360 degrees for flexibility
- 2-way yoke allows 2 or 3 leg pullers for easy interchanging
- Rotate the oil return switch and pull up the handle to pressurize or release pressure; safety flooding valve to avoid overloading
- Hydraulic pump is made of high strength 45# carbon steel and processed by integrated welding for preventing oil leakage and providing sturdiness, rust resistance and corrosion resistance
- Durable alloy steel jaws for ensuring stability
- Easy for you to transport or storage in a mould carrying case
Specification:
- Overall Dimension(LxWxH): 16 9/16" x 8 11/16" x 22 7/16" (42 x 22 x 57 cm)
- Material: 45# Steel
- Max Capacity: 10T
- Axis Travel: 2" (50 mm)
- Min/Max Reach: 0" to 6 5/16" (0 to 160 mm)
- Min/Max Spread: 3 15/16" to 9 13/16" (100 to 250 mm)
- Weight: 22 lbs(10 kg)
Package Includes:
- 1x Hydraulic Puller
- 1x Handle
- 1x 2/3 Leg Puller Yoke
- 3x Puller Legs
- 6x Link Plates
- 1x Thimbler
- 6 Sets of Nuts and Bolts
- 1x Carrying Case
- 1x Manual
