48V 1000W 20" Front Wheel Fat Tire Electric Bike Conversion Kit - Perfect for Commuting, Off-Road Adventures & Urban Riding

Product Description

48V 1000W 20 inch Front Fat Tire Frame Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel, a LED light and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.

Features:

• Approx. 28 mile/h (45 KPH) top speed
• Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs
• The Pedal Assist System (PAS) allows riding an e-bike without throttle response for less fatigue for a long-distance journey
• Supplied with a twist throttle, the motor is easily activated by twisting the handle, while 3 indicators show the battery status
• Brake levers cut off the power and brake when riding; CE certificated for quality & safety assurance
• Battery Recommendation: Lead Acid Battery featured in nominal voltage 48v, nominal capacity 17-20Ah is compatible with the motor.

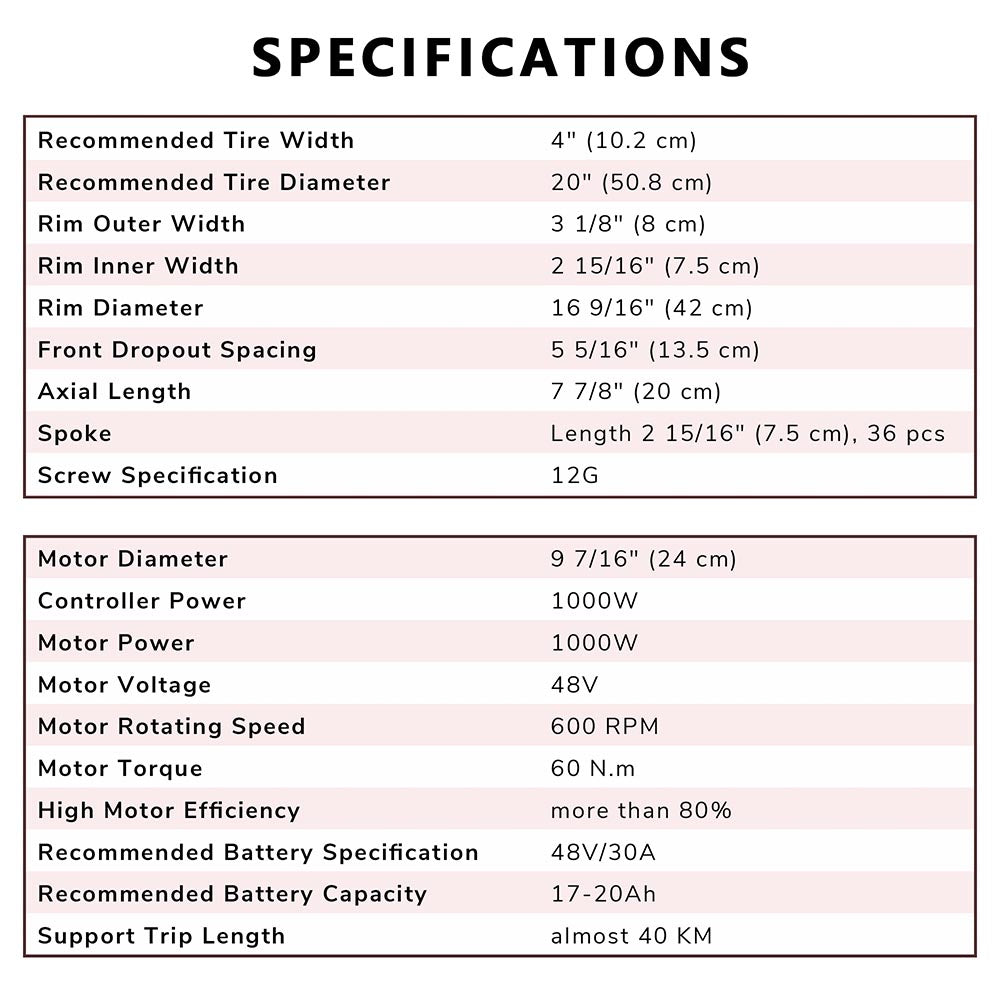

Specifications:

• The ebike conversion kit includes motorized wheel (not included the tire), motor controller, Thumb Throttle, power break lever, wire harness, pedal assist sensor
• Quiet and reliable brushless gearless hub motor
• Motor specifications: 48V / 1000W / 470RPM
• High motor efficiency: 80%

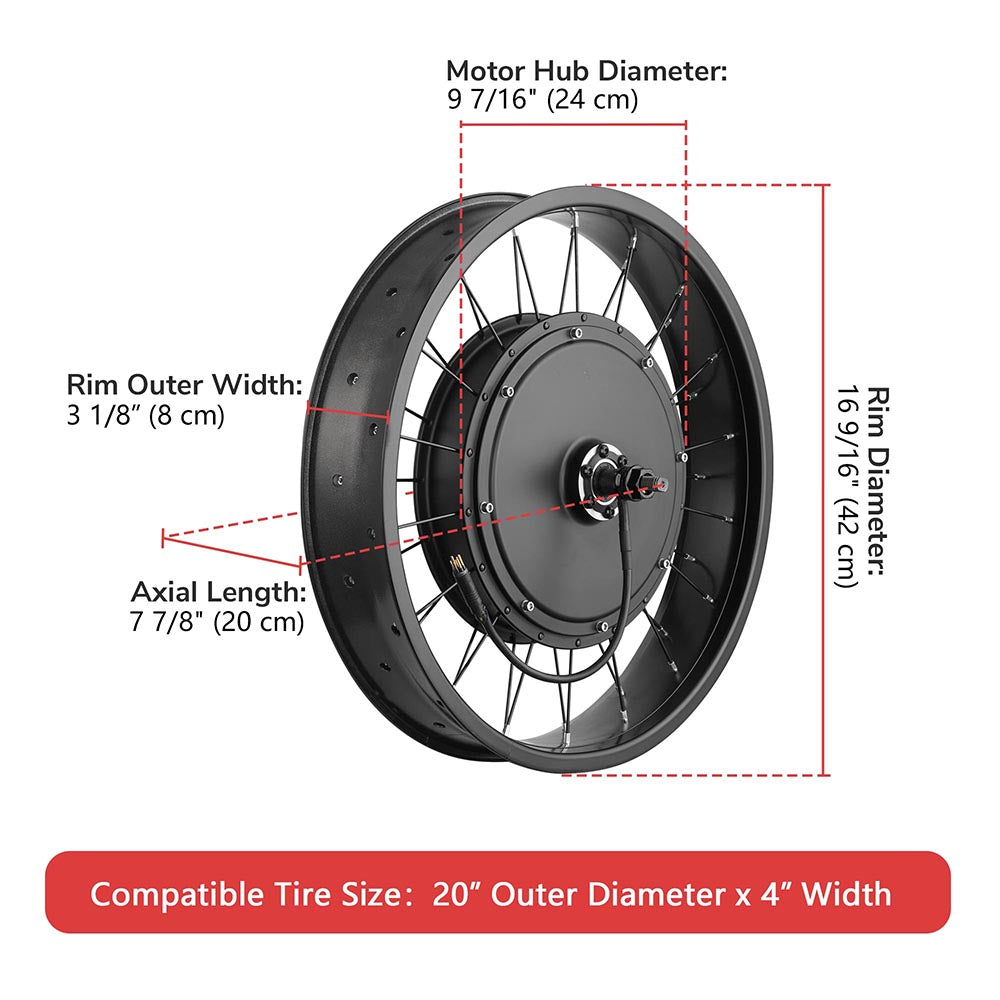

• Motor diameter: 245mm
• Rim: width 3 1/4" (8.3cm)
• Tire: width 4" (not inculdes the tire)
• The motor dropout spacing is 135MM
• Brushless Front Hub Motor mounted 20" fat tire single wall aluminum rim(rim width is 3 1/4")
• Thumb Throttle with 3 LEDs indicator lights
• Applicable Bike: Fat Tire Electric Bike(Not suit for other bike)
• Applicable Tire: 20"x4"
• Hub size: 16-1/2"
• Net weight: 20.9 Lbs (9.5 kg)

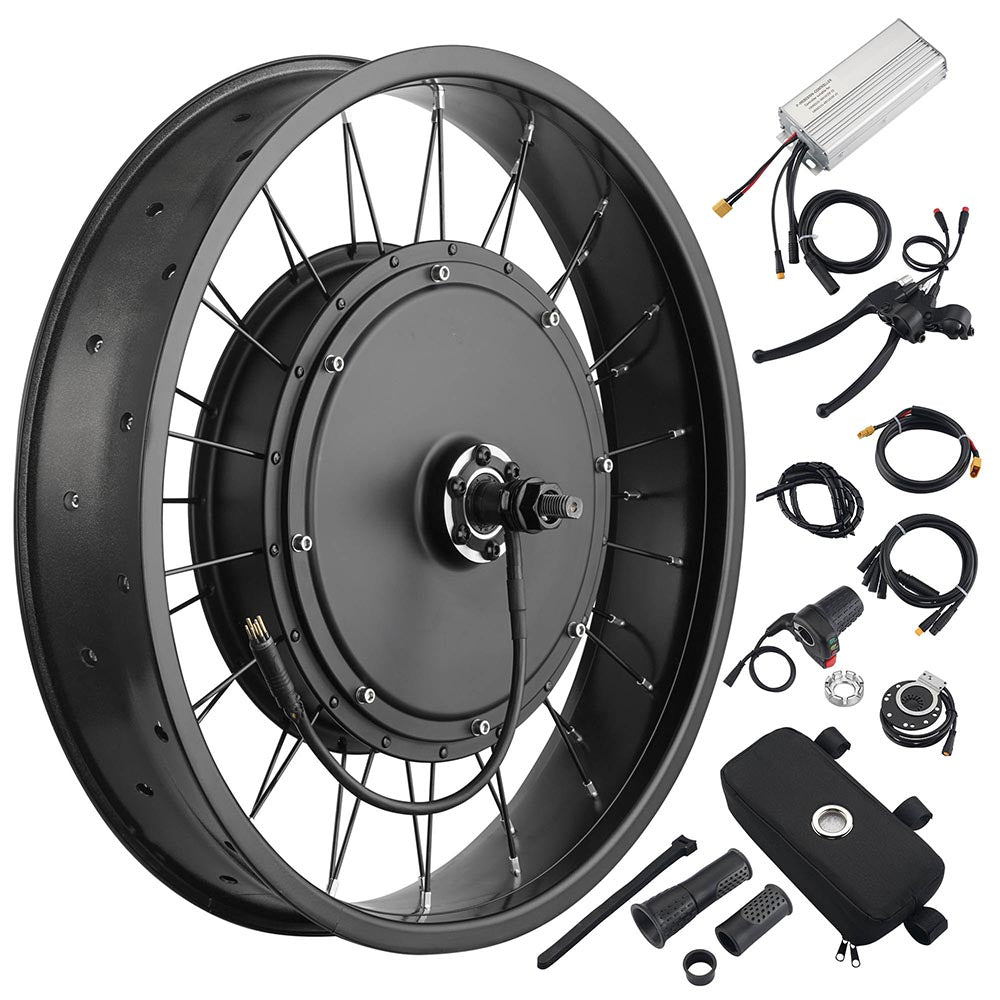

Package Includes:

• 1x 20" Front Wheel with Brushless Hub Motor (Tire is not included)
• 1x 1T4 Waterproof Battery Extension Cord
• 1x Dual Mode Motor Controller
• 2x Brakes Levers
• 2x Handle Grips
• 10x Wire Ties
• 2x Winding Pipes
• 1x Controller Bag
• 1x Hub Wire
• 1x Twist Throttle
• 1x PAS Sensor
• 1x Spoke Key
• 1x Manual

Notice:

• 1.Must to wear a helmet before riding this electric bicycle for protection.
• 2.Please go to those automobile repair shop with standard business license for modification.
• 3.For safety reasons, it is not recommended to use in rainy days.
• 4.It is only applicable to bicycle/snow bike, not tricycles, tractors, etc;
• 5.Suitable battery type and parameters: 48V, 30 Ah, travel about 20km;Recommended capacity is at least 8.8AH or above.
• 6. If you have any question about the compatible Model, please contact our Customer Service before purchasing.
• 7.Battery not included.
