Product Description
36V 750W 20 inch Front Frame 1.95-2.5" Width Rim Electric Bicycle Conversion Kit exactly reaches you needs! By adding an electric motor wheel and a throttle, you will find electric bike will let you enjoy the outdoors, and provide the fun you deserve.
Features:
- The ebike conversion kit includes motorized wheel (without tire), motor controller, thumb throttle, power break lever, wire harness.
- Suitable Bicycle Frame with 3 15/16" front dropout spacing; Compatible for universal disc brake & V brake
- E-bike Conversion Kit - Easily convert your bike to an e-bike for commuting and short trips
- 750W powerful brushless gearless hub motor with 45 km/h top speed; Drive system without moving chains or gears for anti-friction
- CE certified & brake shuts off motor automatically - saves energy & improves safety; Battery powered design for environmentally friendly
- Aluminum alloy frame can support up to 220 lbs. of weight, ensuring durability & stability while rust resistance
- The thumb throttle has 3 battery indicator lights to show the battery status and remind you to charge in time

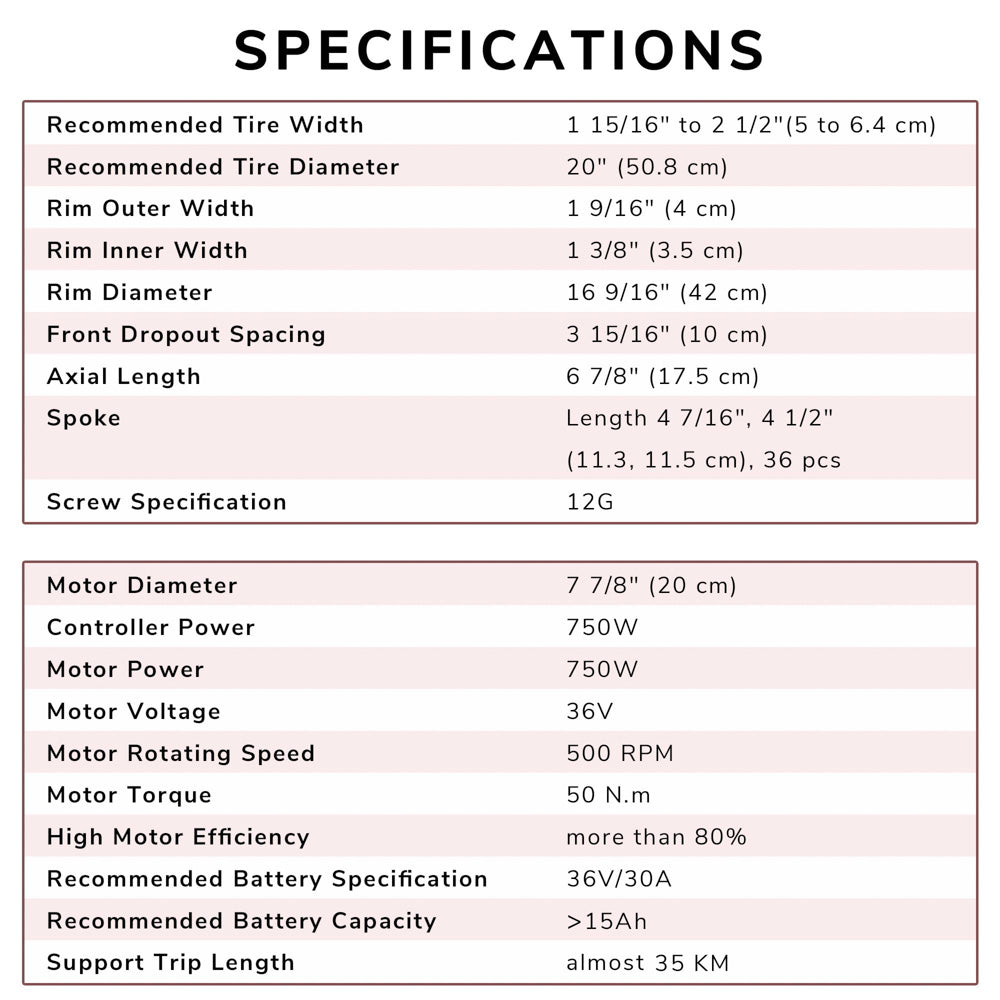

Specification:

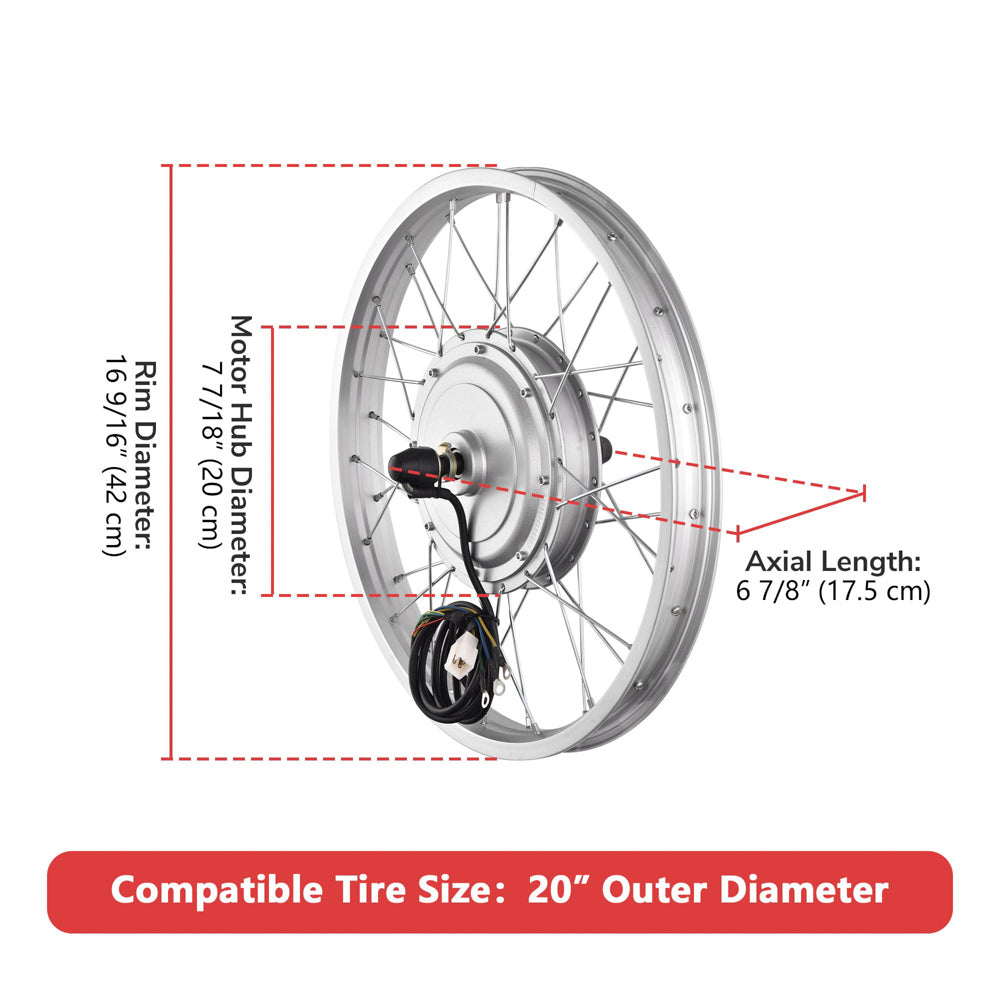

- Overall Dimension(Dia.xW): 16 9/16" x 1 9/16"
- Compatible Tire Size: 20"
- Controller Dimension(LxWxH): 5 14/16" x 3 2/16" x 1 9/16"
- Controller Power: 750W
- Motor Voltage: 36V
- Recommended Battery Specification: 36V, 30A
- Recommended Battery Capacity: Over 15Ah
- Suitable Brake Type: Disc Brake / V-Brake
- Climbing Angle: 12 Degrees
- Net Weight: 14.55 Lbs
Package Includes:
- 1x 20" Front Wheel with Brushless Hub Motor (Tire is not included)
- 1x Controller
- 2x Hand Brakes
- 2x Handle Grips
- 1x Thumb Throttle
- 1x Controller Bag
- 1x Strip
- 1x Winding Pipe
- 1 Set of Cable Ties
- 1x Spoke Key
- 1x Junction Box
*Noice:
1.Must to wear a helmet before riding this electric bicycle for protection.
2.Please go to those automobile repair shop with standard business license for modification.
3.For safety reasons, it is not recommended to use in rainy days
4.It is only suitable for bicycle/mountain bike/BMX, not tricycles, tractors, etc;
5. If you have any question about the compatible Model, please contact our Customer Service before purchasing.
